Durable & Efficient Emitters for Infrared Dryers

The workhorse of our gas infrared dryers is the gas infrared emitter. We have a range of emitters designed for high lifetime, combined with optimal efficiency. Our installations are designed in order to be able to use any of the emitters from our product range.

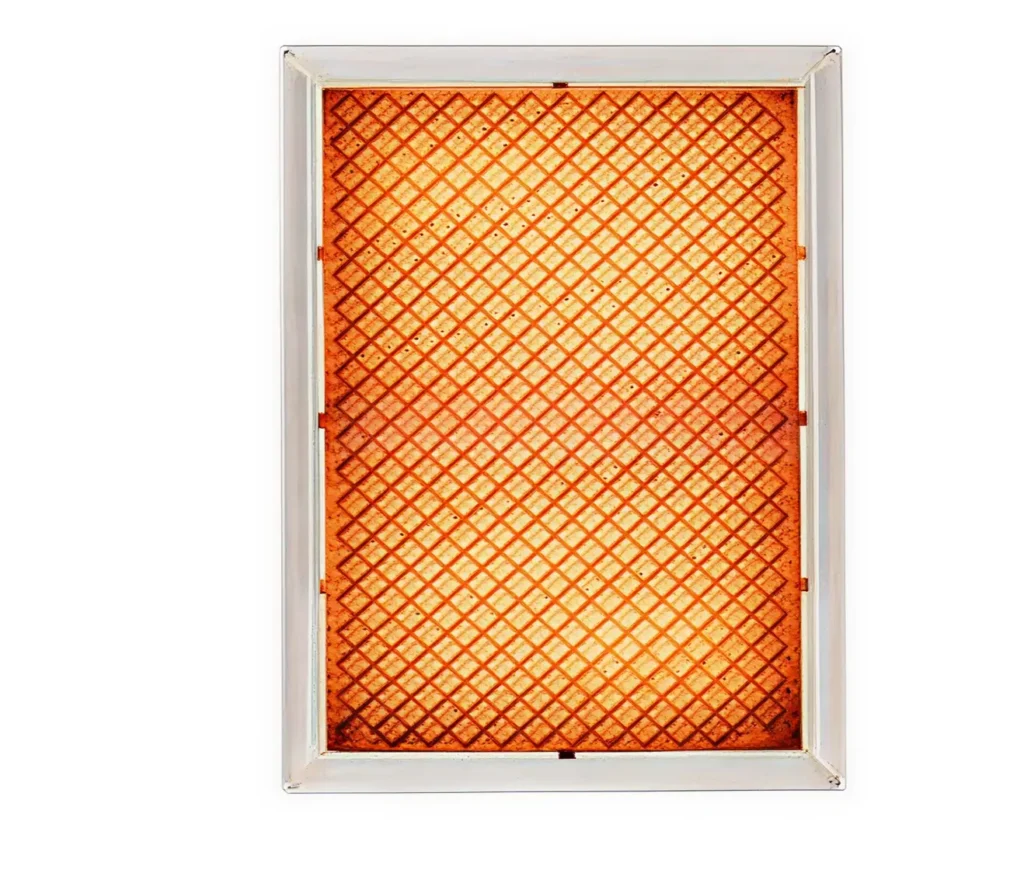

Close-up of infrared emitters

Proven E Emitters with Enhanced Infrared Efficiency

In the market since more than 10 years, our E emitters, GemE (for Ircon-Solaronics systems, 143 x 204 mm) and GerE (for competitor systems, 150 x 200 mm), benefit from two high-technology screens for higher infrared efficiency and a solid ceramic material known for its excellent mechanical properties and offer around 10 % higher direct efficiency. The emitters are optimized thanks to a specific surface treatment to efficiently operate at high temperatures. Input power: from 4 to 12 kW.

  • Optimized compactness
  • High production flexibility
  • Lower energy costs through extensive heat recovery
  • Production boosting

Advanced Technology for Energy Savings

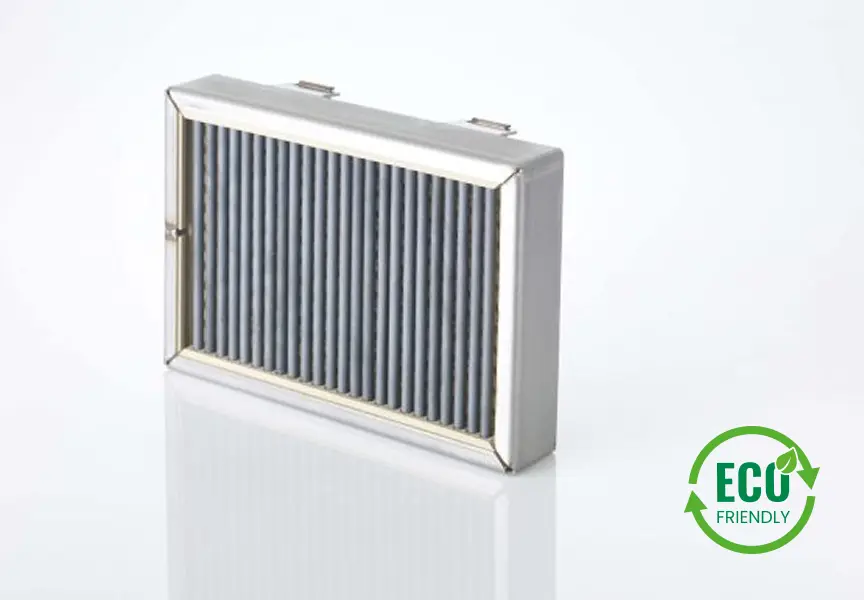

Today, Ircon Solaronics Gem 12-Hi emitter combines the long-proven ceramic technology together with a new designed 3D lattice screen. This technology allow our Gem 12-Hi emitter to achieve significant performances and especialy consequent energy savings.

Our Gas Infrared Emitters

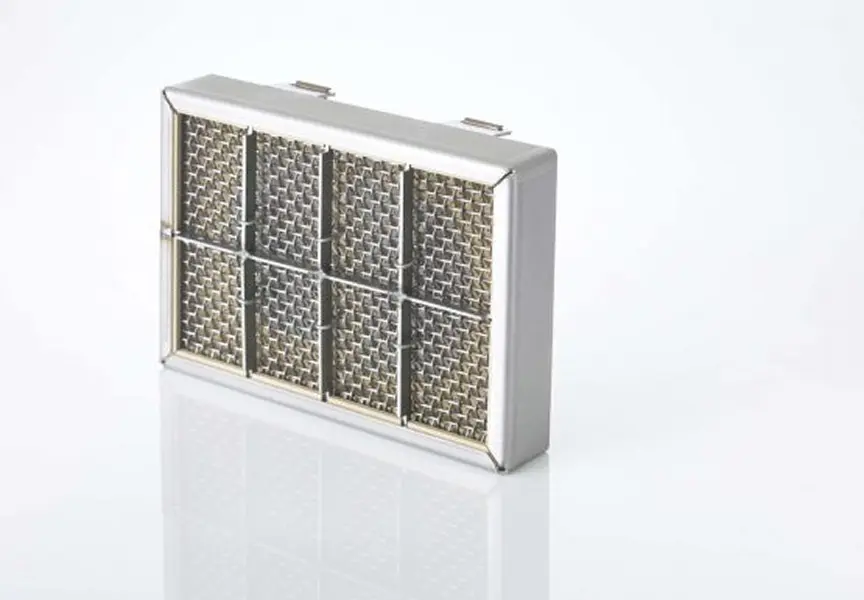

Gem7+/Gem7E

Max input power: Up to 7kW 233kW/m²
Dimensions: 143mm (5.6”) x 204mm (8”)

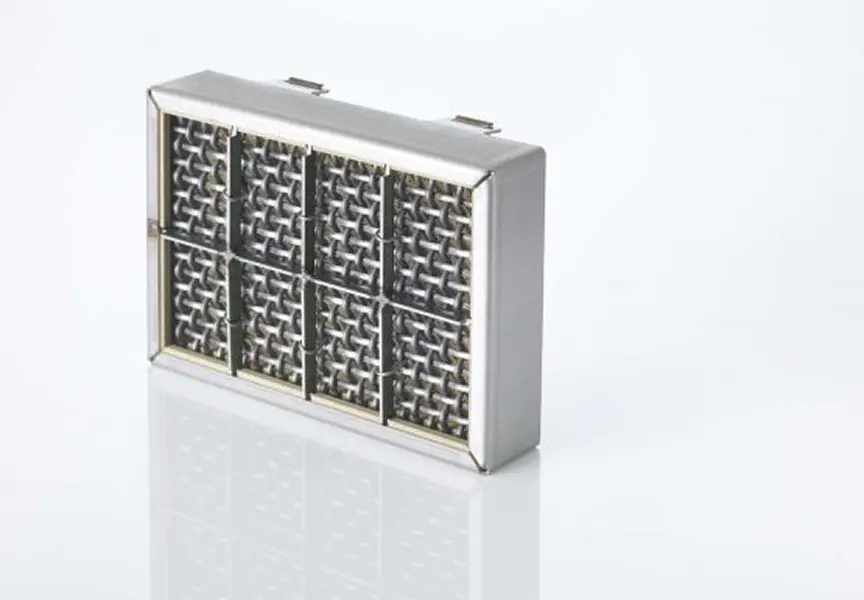

Gem9+/Gem9E

Max input power: Up to 9kW 233kW/m²
Dimensions: 143mm (5.6”) x 204mm (8”)

Gem7+/Gem7E

Max input power: Up to 12kW 419kW/m²
Dimensions: 143mm (5.6”) x 204mm (8”)

Download: Download our Gem 12-Hi emitter brochure

Other Products within
Gas Infrared Technology

Close-up of industrial infrared heating panels glowing bright orange

UniDryer®

The Ircon-Solaronics UniDryer® is a combined gas infrared and air drying system in which high drying performance gas infrared emitters are alternated with high temperature and velocity nozzles. The UniDryer® system benefits from a very high flexibility for the best product quality.

Read more
Large curved industrial infrared drying unit glowing red in a testing area.

GemDryer®

Ircon-Solaronics GemDryer® is a gas infrared non-contact drying system consisting of high performance Gem emitters and Coanda blowing nozzles. This unique combination delivers optimal energy efficiency.

Read more
3D model showing airflow pipes and components in an industrial drying process.

Energy Recovery System

The Energy Recovery system (ERS) is based on using the exhaust air from an infrared system at high temperature level as energy source for the air-dryer, leading to a drastic decrease of gas or steam consumption.

Read more
